W10K5S2

All about your K5 SERIES:

Wiring for 1 SVC 2 Ohm SUBS:

Wiring for 2 SVC 2 Ohm SUBS:

Features:

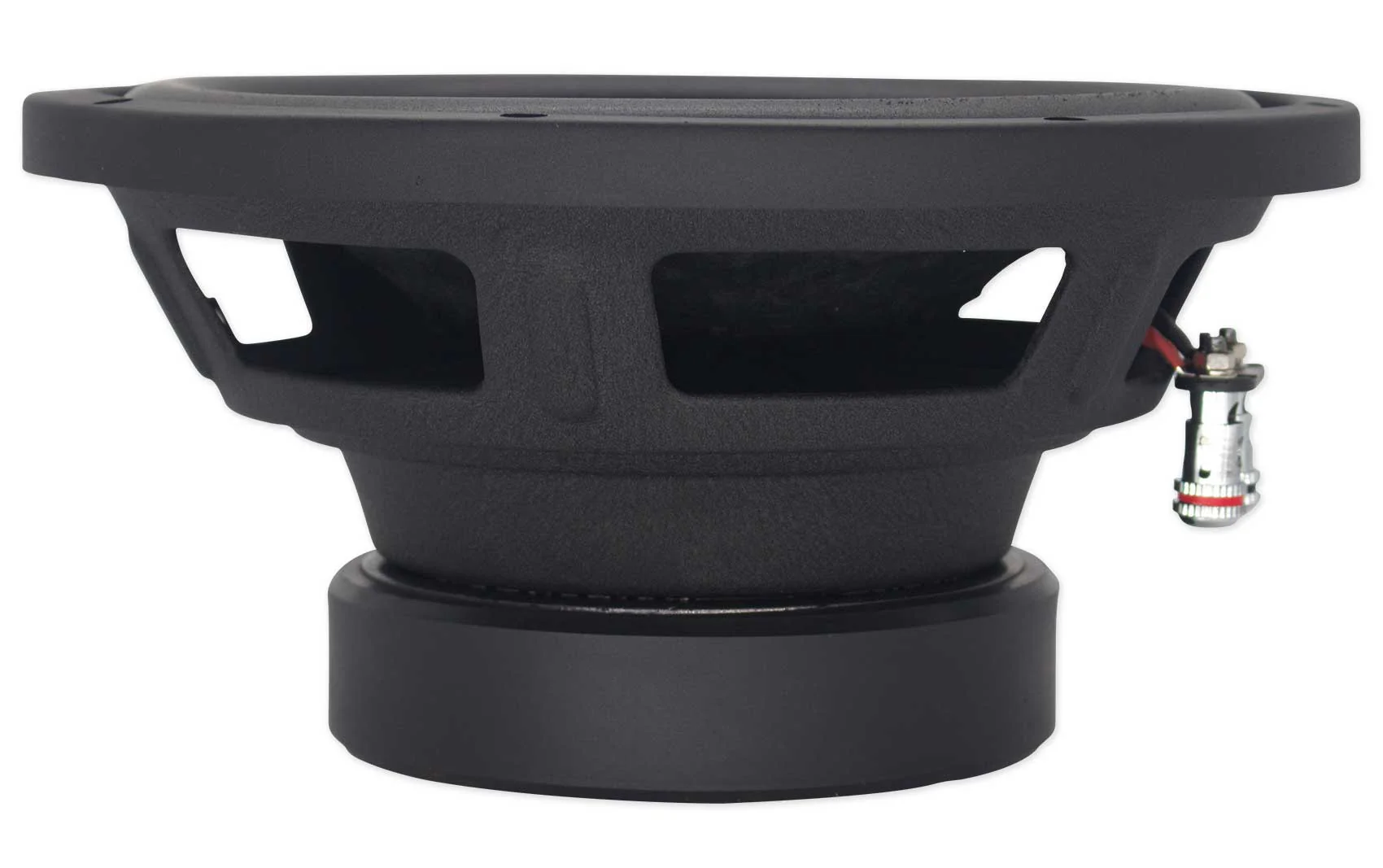

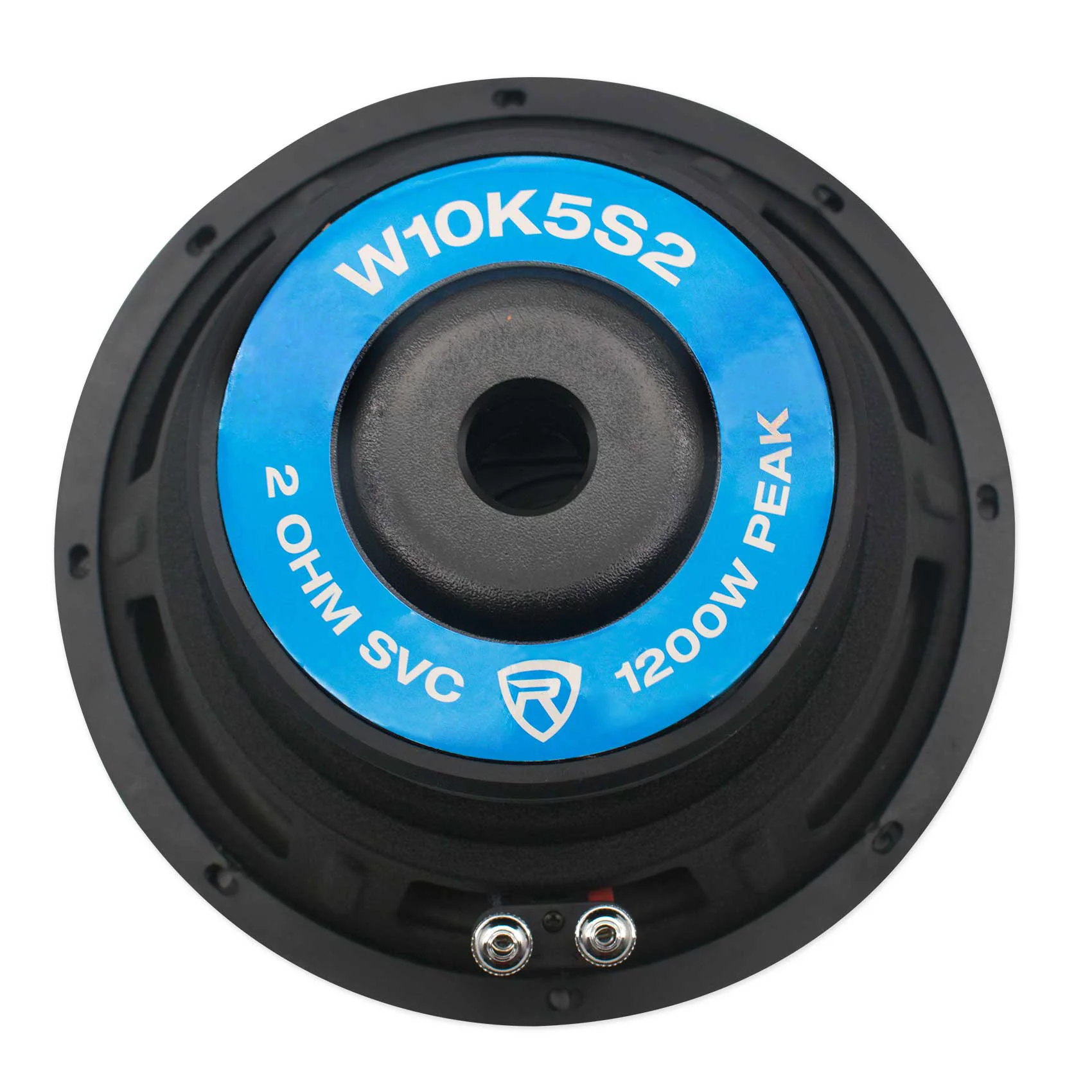

• Rockville W10K5S2 K5 Series 10" 2-Ohm Car Subwoofer
• Peak Power Handling: 1200 Watts
• Program Power Handling: 600 Watts
• CEA Rated RMS Power Handling: 300 Watts
• 2" 4-Layer Black Aluminum Voice Coils Wound with OFC (100% Copper) Wire
• The wire we use to wind the voice coil is imported from Japan which is way better quality than the standard China wire
• 40 Oz High Quality Magnet
• Cast Iron Basket With Black Sanded Finish
• Fiber Reinforced Ultra Stiff Black Non-Pressed Paper Cone - This cone is very efficient which makes the speaker sound louder even without requiring a lot of power to push it
• Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion
• Blue Stitching Cone Reinforcement Ensures Long Life
• Paper Dust cap is light weight and efficient helping the sub to play louder even if your amp is not so powerful

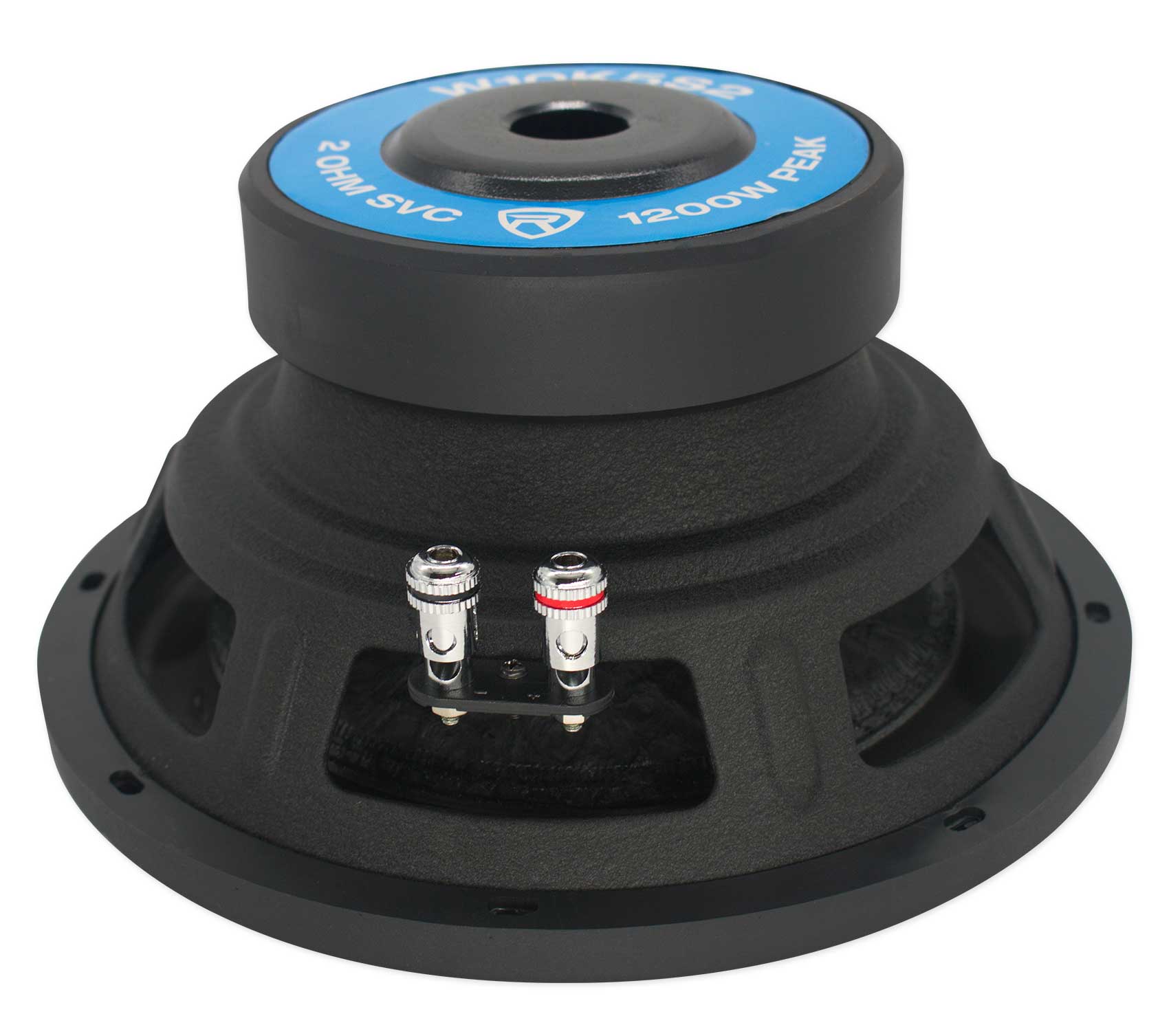

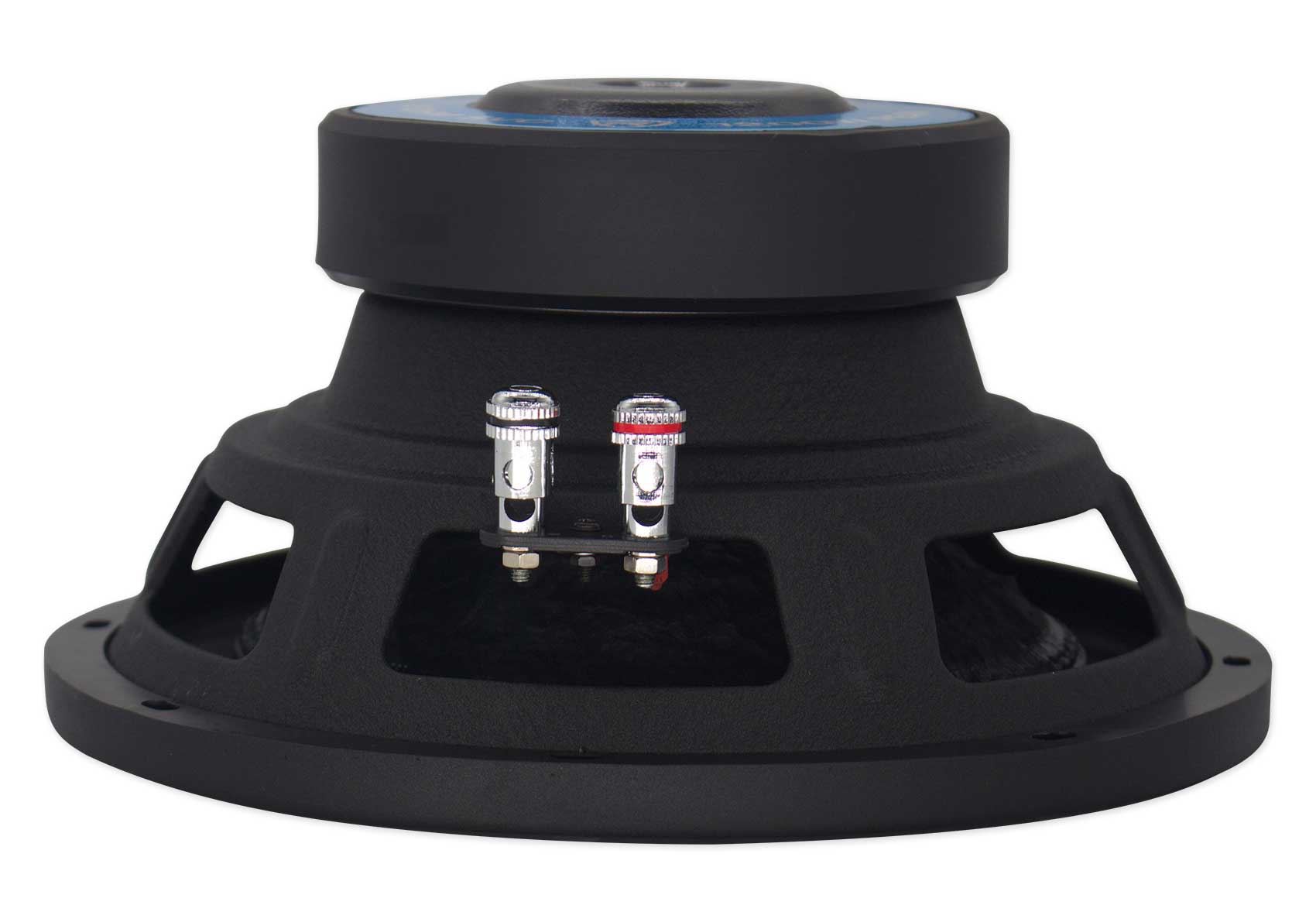

• Chrome-Plated Binding Post Terminals - These are the best terminals on the market and they accept any gauge wire
• Impedance: Single 2-Ohm Voice Coils
• Vented Hole on T-yoke Enhances Heat Dissipation
• Rubber Boot Magnet Covers Make the Woofer Look Nice and Protects the Magnet
• Mounting Gasket with Rockville branding looks great and Makes it Easy To Mount the Subwoofer Air-Tight
• High BL Magnetic Motor Gap
• We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated

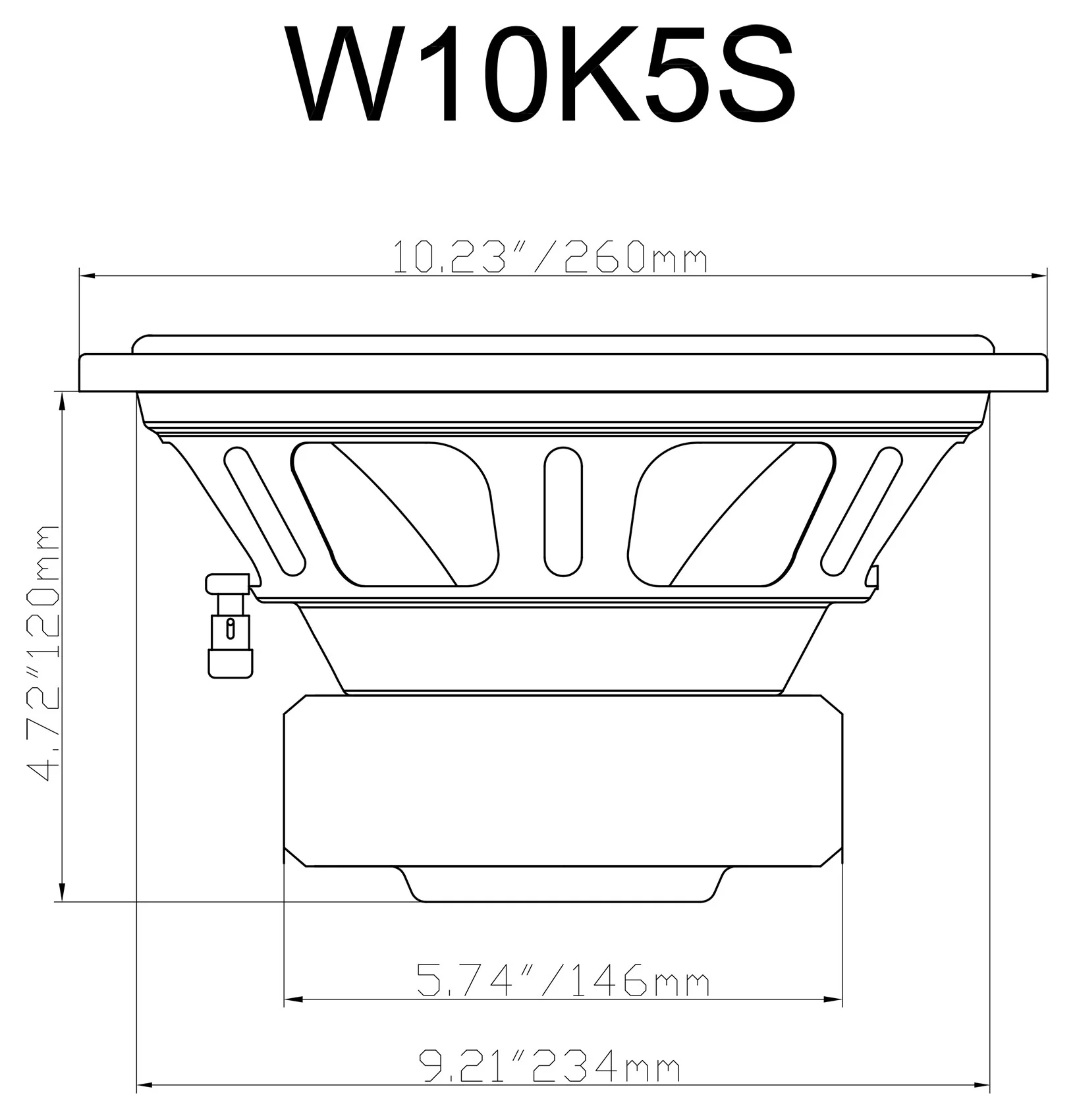

• Cutout Diameter: 9.05 inches
• Mounting Depth: 4.52 inches
• Frequency Response: 28 Hz - 1.3K kHz
• 6mm T-Yoke + 6mm Washer
• Sensitivity: 85.5dB
• Sealed Enclosure Volume: 0.5 - 1.3 Cubic Feet
• Vented/Ported Enclosure Volume: 0.9 - 1.6 Cubic Feet
• Weight: 7.8 Lbs.
• Shipping Weight: 9.3 Lbs.
• Shipping Box Dimensions: 11.42x 11.42 x 8.26 Inches

Detailed Info:

• Body: Non-Pressed Paper
• Gap Plate Inside Diameter: 70mm (2.75 inches)
• Gap Plate Outside Diameter: 140mm (5.51 inches)
• Gap Plate Thickness: 25mm (0.98 inches)
• Yoke Outside Diameter: 130mm (5.11 inches)
• Yoke Thickness: 6mm (0.23 inches)
• Yoke Pole Diameter: 50mm (2 inches)

​​
