dB10

All About Your DB10:

How To Set Up Your DB10:

Functions, Inputs, and Wires Explained on Your DB10:

How To Set the Gain On your Car Subwoofer Amplifier:

Features:

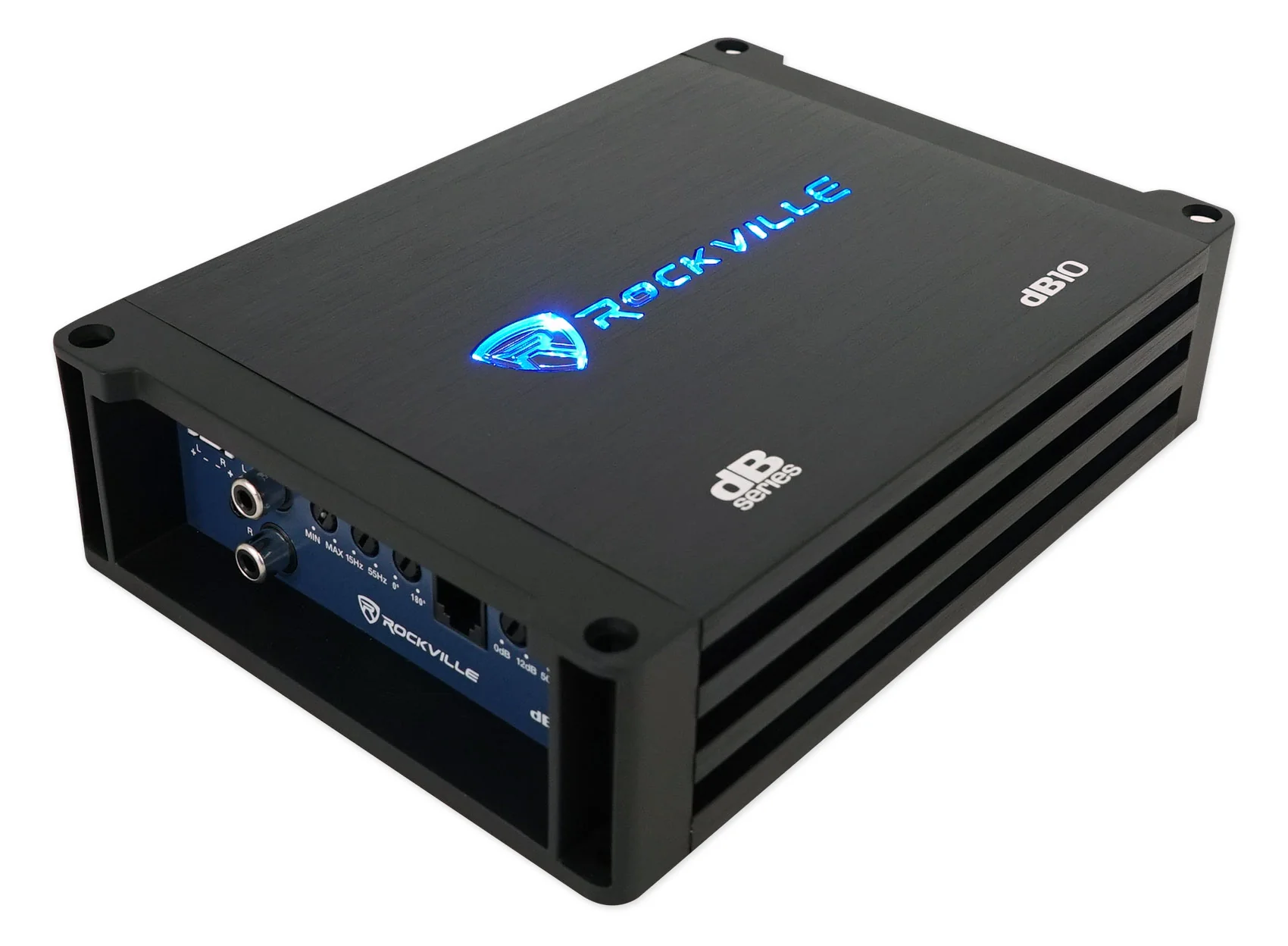

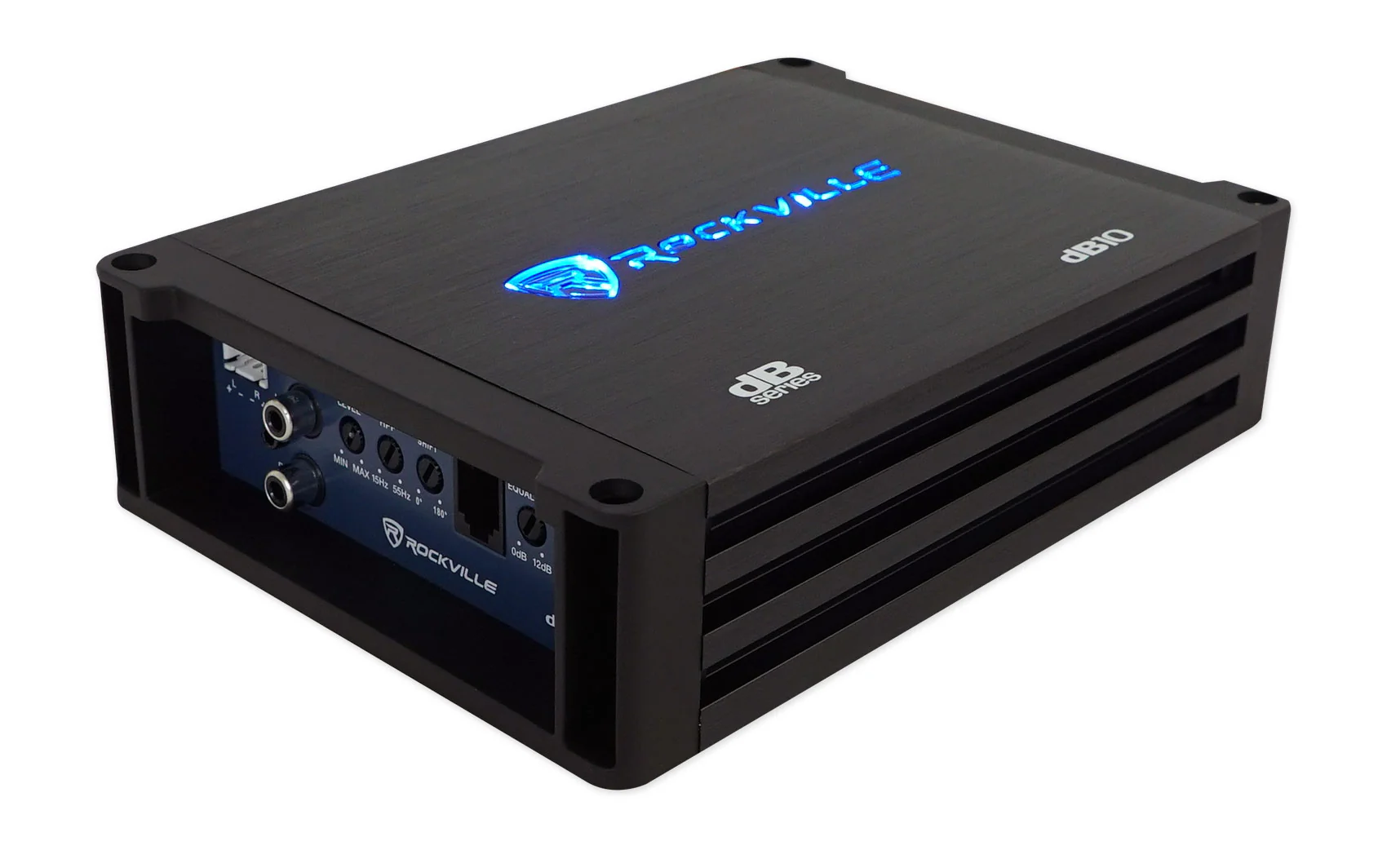

• Rockville dB10 800 Watt/200 Watt Dyno-Certified RMS Mono Class-D 4-Ohm Amplifier
• Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
• 4 Ohm: 200 Watts x 1 Channel
• Peak:) (Use these ratings when comparing with great brands such as Boss, Power Acoustik, etc)
• 4 Ohm: 800 Watts x 1 Channel
• High-Speed MOSFET Power Supply
• Minimum THD at Rated Power: <0.1%
• S / N Ratio: >90dB
• Under Voltage Protection: 10V
• Over Voltage Protection: 16V
• Frequency Response: 15 Hz - 250 Hz
• Damping Factor: >60 @ 100Hz
• Optical Coupler Class “D” Technology
• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
• Low Pass Filter: 50 Hz - 250 Hz
• Subsonic Filter: 15 Hz - 55 Hz
• Phase Control
• Full IC-Controlled Protection Circuitry
• Fully Adjustable 12dB Bass Equalizer
• Mute and Delay Soft Start System
• Status Mode LED Indicator
• 25 Amp ATO Fuse
• Product Dimensions: (L x W x H) 7.7" x 5.5" x 2.0"
• Product Weight: 4.4 Lbs.
