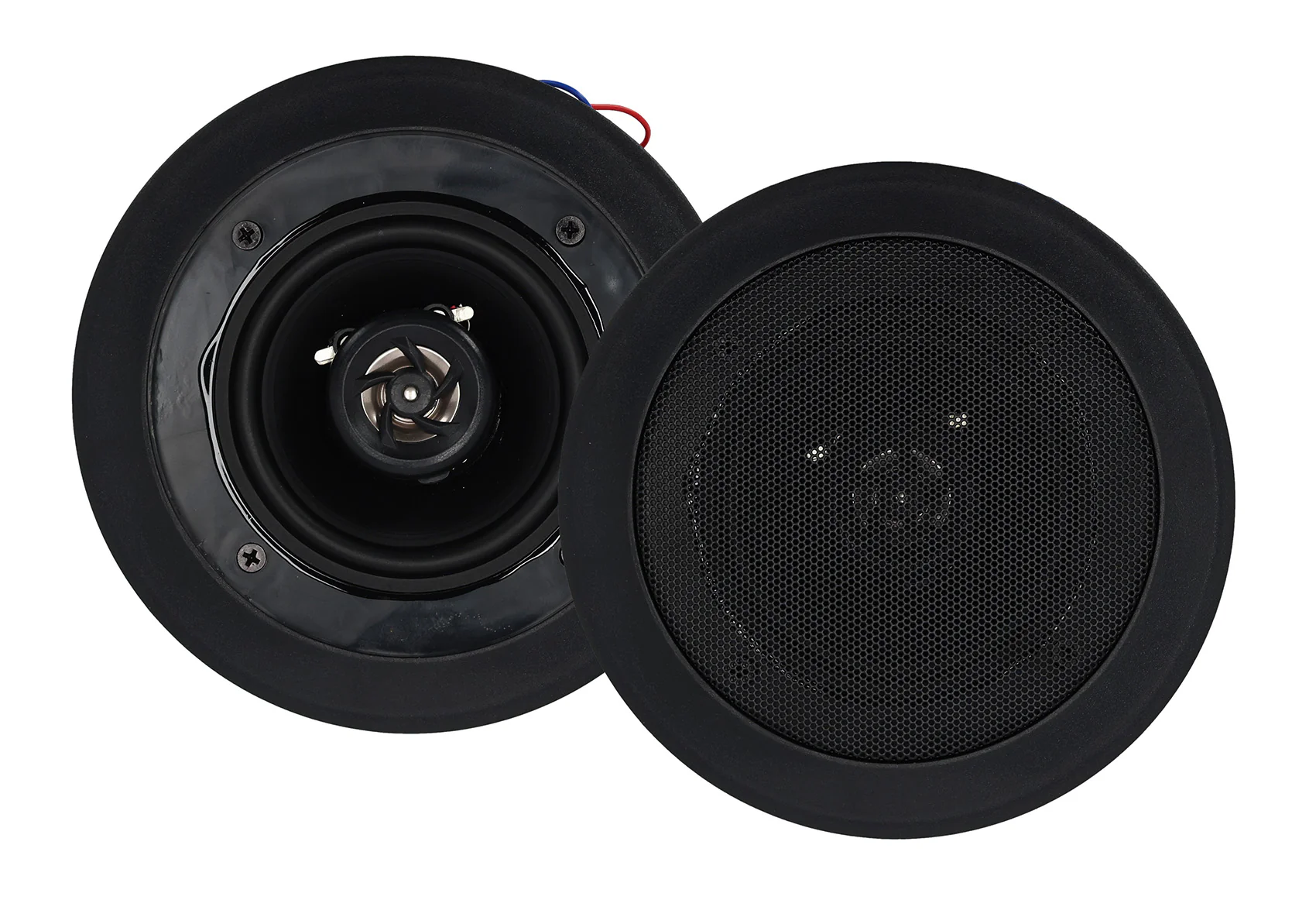

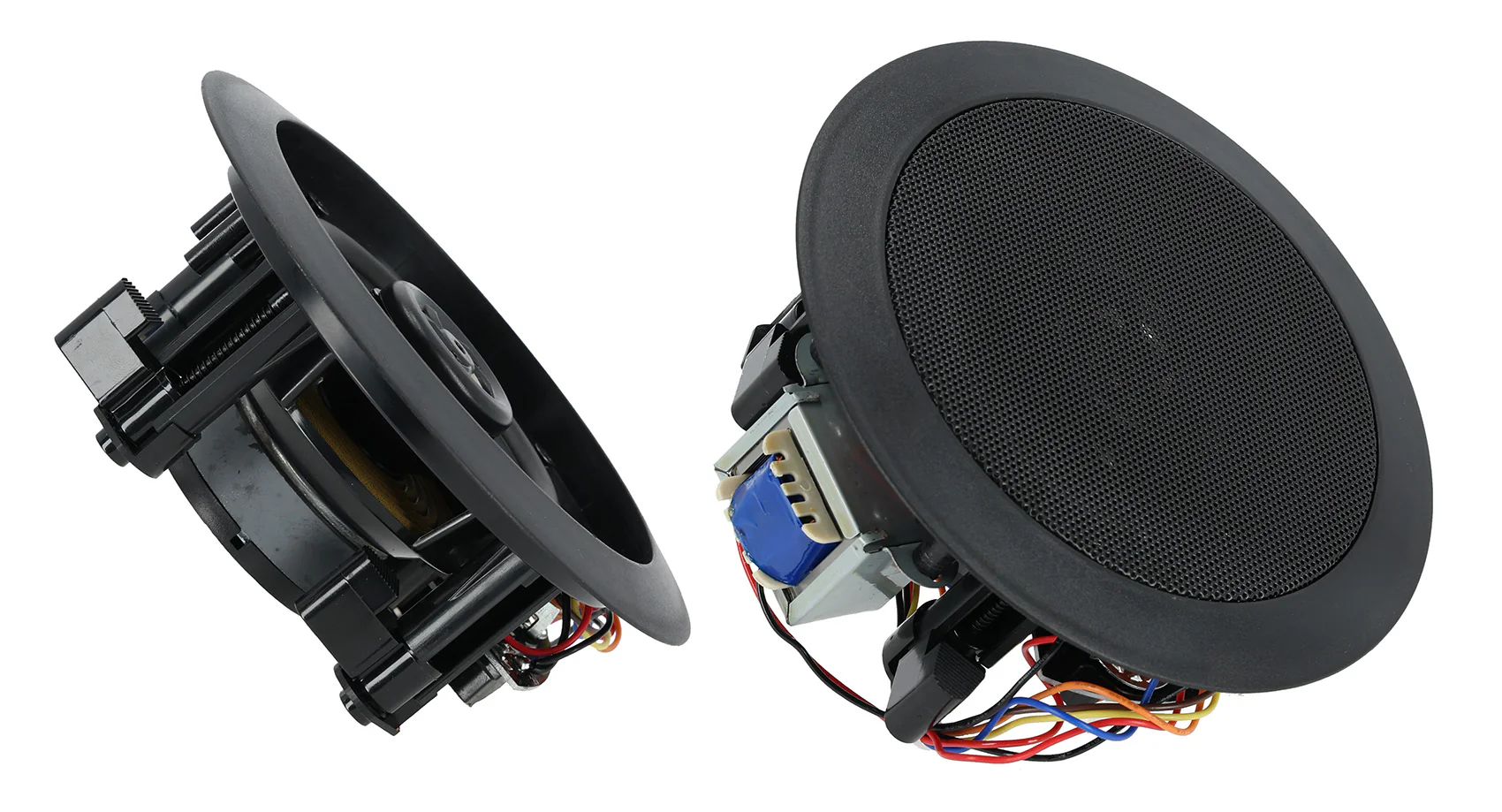

CC4T BLACK [Used]

The Rockville CC4T Black 4” Commercial 70V In-Ceiling Speakers are designed for use in restaurants, bars, cafes, and other commercial spaces.

What Is 70 Volt?
70-volt systems are the preferred choice when you need to install multiple speakers. Here’s why they offer advantages over 8-ohm systems

Simplicity of Wiring
Connecting speakers in a 70-volt system is straightforward. You wire all the positive terminals of the speakers to the positive 70-volt terminals of the amplifier, and the negative terminals connect similarly.

Matching Speakers
It’s easy to match speakers with the amplifier. For instance, with a 150W 70V amplifier, you can install speakers totaling around 120 watts. Whether it’s 12 speakers at 10 watts each or 24 speakers tapped at 5 watts each, the flexibility is unmatched.

Customization via Tapping
Each speaker has a selector switch (the “tap”) on its rear. This limits the watts the built-in transformer allows the speaker to receive from the amplifier. In a restaurant, you can customize sound levels—for example, 6 watts for dining room speakers, 3 watts for hallway speakers, and 1.5 watts for bathroom speakers.

Mix and Match
70-volt systems allow mixing and matching of various speakers—ceiling speakers, wall-mounted speakers, and subwoofers.

Long Speaker Wire Runs
70-volt systems handle long speaker wire runs without signal loss.

The Rockville CC4T speakers combine quality components, customizable sound, and the benefits of a 70-volt system, making them an excellent choice for commercial installations.

70V Power Options:

• 20W

• 15W

• 10W

• 5W

• 2.5W

• 8 Ohm Power Handling: Up to 30W

• Color: Black

• Mounting Depth: 2.6 inches

• Cut-out Diameter: 5.6 inches


Speaker Components:

• Polypropylene Cone: Ensures durability and accurate sound reproduction

• Rubber Surround: Provides flexibility and longevity

• 4” Woofer: Delivers clear midrange and bass frequencies

• 1” Aluminum Voice Coil: Enhances overall performance

• ½” Mylar Dome Tweeter: Produces crisp highs

• 5.4 oz. Ferrite Magnet: Ensures efficient magnetic coupling


Features:

• High-Quality Spring Loaded Push Terminals: Easy and secure wiring connections

• Aim-able Swivel Tweeter: Allows you to direct sound where needed

• Paintable Flush Mount Grills: Blend seamlessly with your ceiling

• Frequency Response: Covers a range from 100Hz to 20KHz

• Sensitivity: 87dB @ 1W / 1m

• Impedance: 8 Ohms
